Lehmann Audio Black Cube SE II
Preamplificador de phono MM/MC con fuente de alimentación separada.
Ajuste de ganancia e impedancia.
Black Cube SE II
We have introduced half a dozen different phono stages to a very demanding market and have built a reputation merely from their performance. The Black Cube SE II comes with top notch technology that points towards higher price points, like all Lehmannaudio electronics.

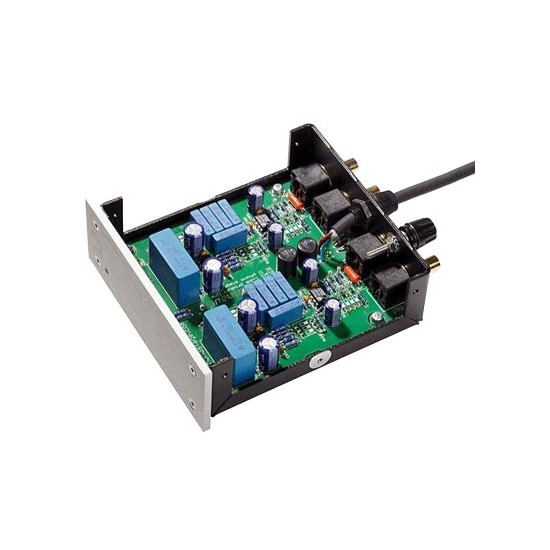

The input stages used in the this device can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors to realize an artefact-free transport of microdynamics and room information. The switches for gain and load settings have gold plated connectors for reliable performance.
This is a true audiophile phono stage and, partnered with equipment of equal quality, the results are remarkable.
– Hifi News
A true audiophile phono stage
The maximum gain of the Black Cube SE II is high enough for even very low output MC cartridges. Cartridge adaption itself is totally flexible because gain and lading can be chosen independently from each other. To top this all off, there is a slot for a custom impedance resistor, so that even the most exotic MC cartridges can be loaded adequately without having to buy expensive impedance plugs. No soldering needed.
Because of the small outer dimensions, the Black Cube SE II audio section can be placed next to the turntable. This minimizes loss due to cable length.

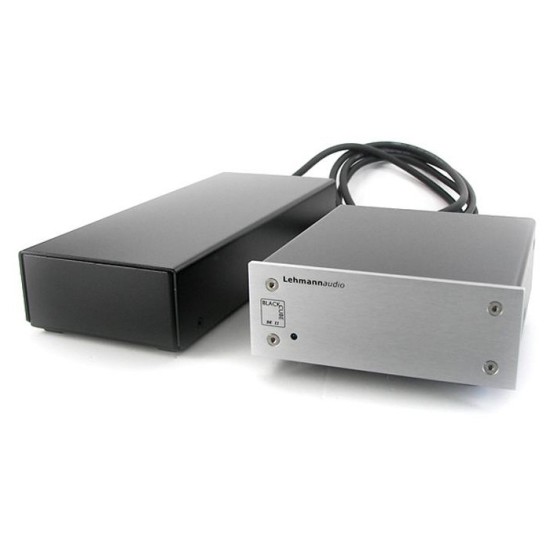

Lehmannaudio always pays special attention to details: the cable between power supply and audio section is shielded and ensures flexible placement of audio section and PWX power supply. The cases of both th power supply and the audio section are made of non-magnetic aluminum; additionally equipped with a top cover coated with a special anti-resonance treatment for better suppression of microphonic effects.
A brand new feature that is built into the Black Cube SE II is the entirely passive bass filter, that is a great help when tayloring the lower corner frequency of the vinyl reproduction to personal needs. 16 different filter curves can be realized.
Especificaciones:
Etapa de entrada |
Preamplificador doble mono microfónico |
Ajustes de ganancia |
36 dB, 46 dB, 56 dB, 66 dB |
Ganancia máxima |
66 dB |
Impedancias internas |
47k, 1k, 100 ohmios (seleccionable) |
Personalización de la impedancia en placa |
Sí |
Capacitancia interna de la entrada y tipo de condensador |
100 pF (KP 1%) |
Filtro suave para grave |
16 configuraciones diferentes para un ajuste optimizado del filtro paso alto, mediante switch tipo DIP |
Alta ganancia |
Sí (Seleccionable vía switch tipo DIP) |
Condensadores del filtro RIA |
MKP |
Acople de grave tras RIA |
MKP |
Segunda etapa de ganancia |
Operacional doble mono Burr Brown OPA 134 |
Condensador de salida |
MKP |
Jumper de salida DC |
Sí |
Características de la fuente de alimentación en placa de audio |
Choque y filtros RC con bypass electrolítico |
