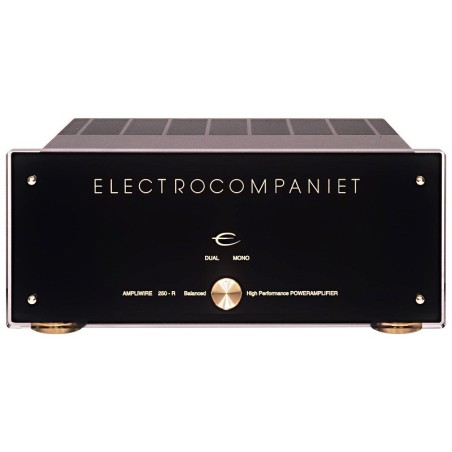

Electrocompaniet AW-250R
Etapa de Potencia Clase A
Balanceada,Dual Mono, 2 x 250W a 8 ohmios
CARACTERISTICAS
The Electrocompaniet AW250R power amplifier is known for its uncolored and excellent reproduction qualities.
From the first note of any familiar recording, you will be captivated by the AW250R and by the musical enjoyment it will give you.
The AW250R incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of conventional power supply designs, as well as first class overall circuit design and state-of-the-art components.
The AW250R features a balanced link to additional power amplifier(s). Compared to more expensive High-End power amplifiers, with lesser performance, you will truly cherish the AW250R. The Electrocompaniet AW250R features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.
S P E C I F I C A T I O N S
Amplifier section
Output Impedance (20 Hz -
20 kHz)
< 0,008 W
RCA (single) input impedance
220 kW
XLR (balanced) input impedance
110 kW
Input sensitivity for rated output
1 V
Max. peak current
> 100 A
THD (measured at 1 kHz
half power, 8 W)
< 0,001 %
THD (measured at 1 kHz
-1 dB, 8 W)
< 0,001 %
Noise
(measured with both inputs shorted)
400 Hz - 30 kHz : 90 µV
10 Hz - 30 kHz : 100 µV
Rated output power
8 W
2 x 250 W
4 W
2 x 380 W
2 W
2 x 625 W
1 W
2 x 1100 W
Power consumption (no load or signal)
230 W
Dimensions
Width
483 mm / 19 inches
Depth
450 mm / 17 inches
Height
210 mm / 8.2 inches
Weight
39 kg. / 85.8 lbs.
