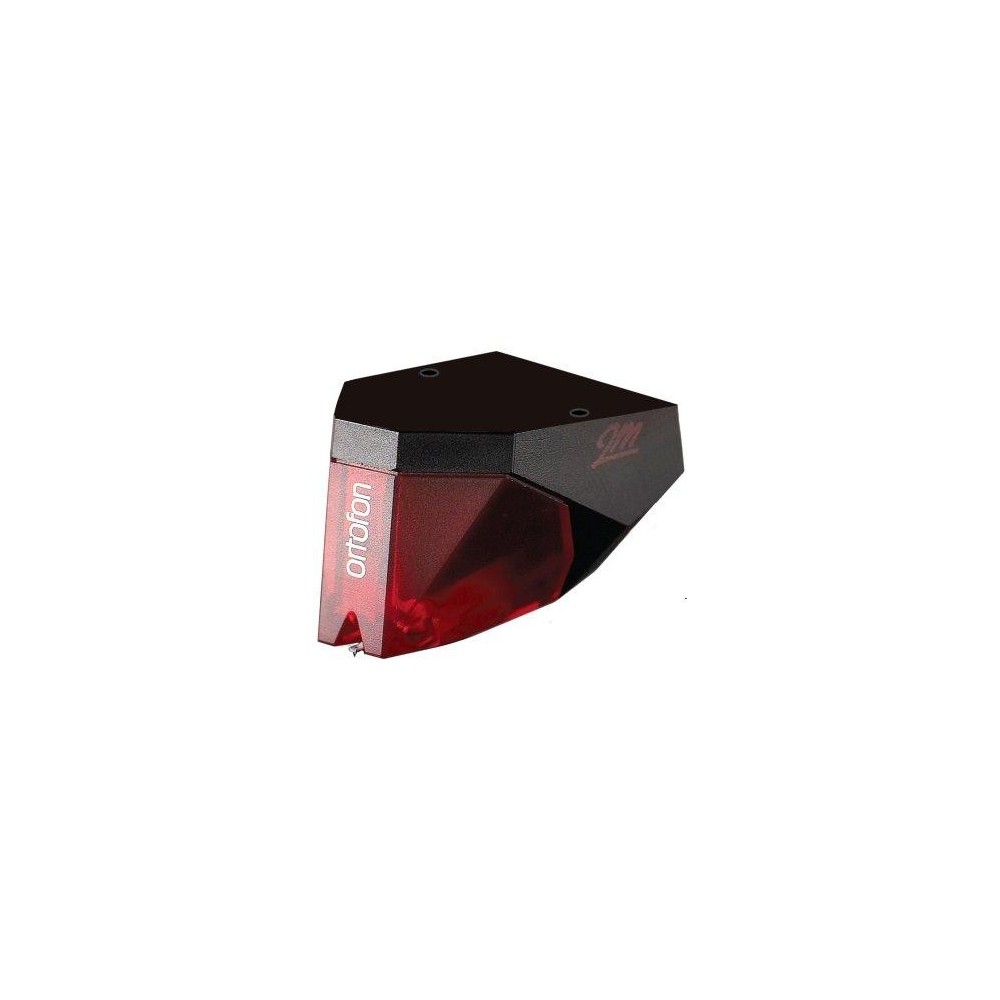

Ortofón 2M Red

Ortofón 2M Red

Cápsula de imán móvil,(MM) de 5,5 mV de tensión de salida

84,15 € 99,00 € -15%
Impuestos incluidos





The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

 The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

 The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

 We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps. To find the recommended Ortofon replacement cartridge for your turmtable/tonearm please visit our Replacement cartridges selector ».

The new 2M Red Verso is an alternative product for bottom mount tonearms

 The 2M Red Series features:


  • An improved engine, which provides an increased output of 5.5mV
  • A tipped Elliptical diamond and split pole pins with a copper wire

 Especificaciones:



Voltaje de salida

5,5 mV @1 kHz, 5 cm/seg

Balance de canales a a 1 kHz

1,5 dB

Separación de canales a 1 kHz

22 dB

Separación de canales a 15 kHz

15 dB

Rango de frecuencia a -3 dB

20 - 22.000 Hz

Respuesta de frecuencia

20 - 20.000 Hz +3/-1 dB

Precisión de lectura a 315 Hz a la fuerza de apoyo recomendada

70 µM

Compliancia, dinámica, lateral

20 µm/mN

Tipo de aguja

Elíptica

Radio de la punta de la aguja

r/r 8/18 µm

Rango de fuerza de apoyo

1,6 - 2,0 g (16 - 20 mN)

Fuerza de apoyo recomendada

1,8 g (18 mN)

Ángulo de lectura

20º

Impedancia interna, resistencia a continua

1,3 kohmios

Inductancia interna

700 mH

Resistencia de carga recomendada

47 kohmios

Capacitancia de carga recomendada

150 - 300 pF

Color de la cápsula: cuerpo/aguja

Negro / Rojo

Peso de la cápsula

7,2 g
