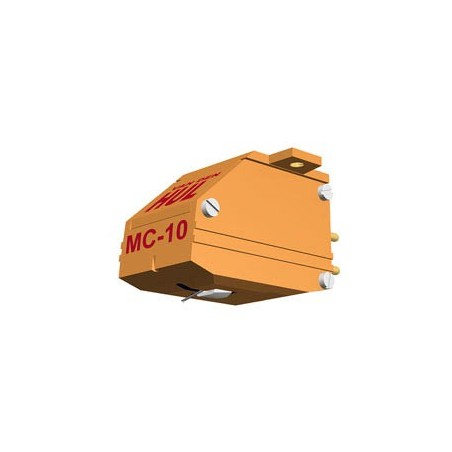

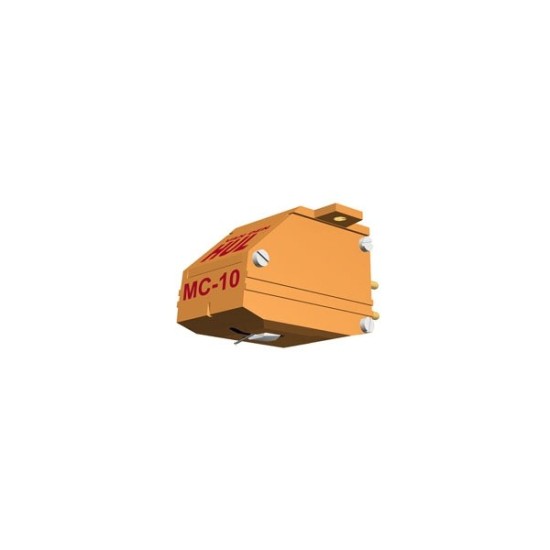

Van Den Hul MC-10 Special

Especificaciones:

Cartridge Type MC - 10 Special Unit
Stylus Replacement Available see (*)
Stylus Shape VDH - I
Stylus Radii 3 x 85 Micron
Frequency Range 5 - 50.000 Hz
Tracking Force 13.5 - 15.0 mN
Static Compliance 28 Micron / mN
Tracking Ability at 15 mN at 315 Hz 70 - 80 Micron
Output Voltage at 1 kHz at 5.7 cm/s eff. 0.65 mV RMS
Channel Unbalance < 0.5 dB
Channel Separation at 1 kHz/10 kHz >35 / >30 dB
Equivalent Stylus Tip Mass 0.35 Milligram
System Weight 8.2 Gram
Vertical Tracking Angle 22 Degrees
Optimum Load Capacitance see (**) pF
Recommended Load Impedance 200 Ohm
Recommended Eff. Tone arm Mass 8 - 12 Gram
Moving Coil Resistance (per channel) 9 Ohm
